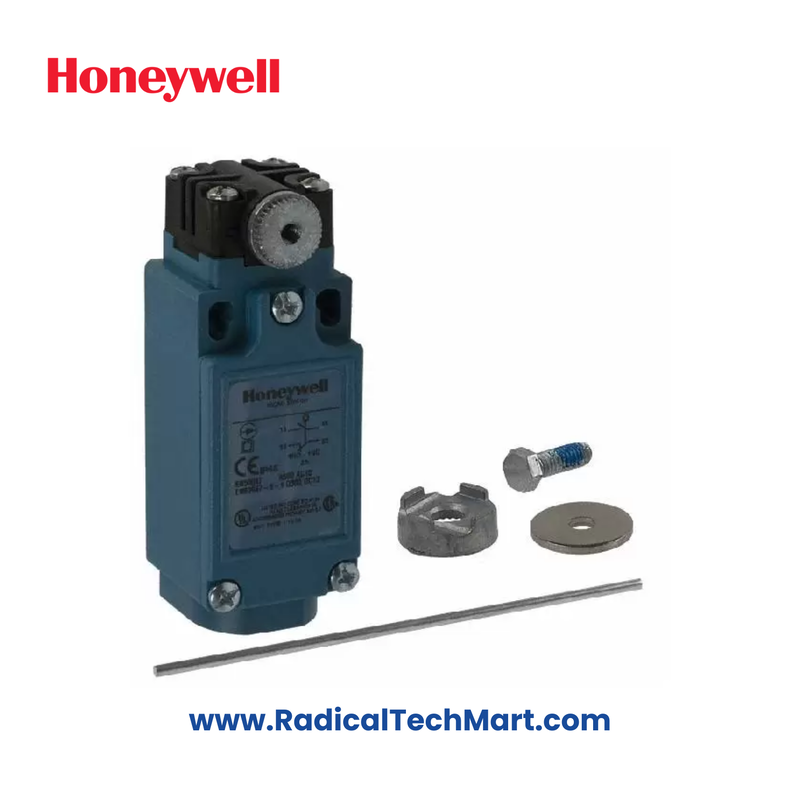

GLDA01A4J Honeywell Limit Switch

Product: Honeywell GLDA01A4J

Brand: Honeywell

Model: GLDA01A4J

Key Features:

1. Actuators:

   • Side rotary
   • Top pin plunger
   • Top roller plunger
   • Top roller lever
   • Top wobble actuator

2. Termination Options:

   • 0.5-14 NPT
   • PG 13.5
   • 20 mm
   • PF 1/2
   • Deutsch style 4-pin connector
   • Other cable/connector options available (Contact Honeywell Representative for details)

3. Contact Options:

   • GLC metal housing and GLD plastic housing:
     • 1NC/1NO, 2NC, 2NO
   • GLE metal housing:
     • 1NC/1NO, 2NC, 2NO, 2NC/2NO

4. Contact Type:

   • Snap-action
   • Slow-action break-before-make (BBM)
   • Slow-action make-before-break (MBB)
   • Slow action

5. Contact Material:

   • Silver (standard)
   • Gold-plated (for low-energy applications)

Electrical & Mechanical Specifications:

1. Thermal Current (Ith):

   • 10 A

2. Rated Insulation Voltage (Ui):

   • 300 V

3. Rated Impulse Voltage:

   • 2.5 kV

4. Sealing:

   • NEMA 1, 4, 12, 13
   • IP66

5. Operating Temperature:

   • -40°C to 85°C (-40°F to 185°F)

6. Mechanical Life:

   • Up to 10 million cycles

7. Pollution Code:

   • 3

8. Max Actuation Frequency:

   • 250 operations/minute
   • 100 operations/minute (wobble actuators)

Environmental Performance:

1. Shock:

   • 50 g per IEC 60068-2-27
   • Railway application per IEC 61373 Class I Car B Type

2. Vibration:

   • 10 g per IEC 60068-2-6
   • Railway application per IEC 61373 Class I Car B Type

Approvals & Standards:

• Approvals:

  • CE, UKCA, UL, CSA, CCC1

• Conforming to Standards:

  • EN50047
  • IEC/EN 60947-5-1
  • CSA C22.2 #14
  • UL 508
  • CCC1 GB14048.5
  • EN45545-2 (GLC/GLE)
